Custom Truck Floor Mats: Trays, Carpet and All-Weather Liners
Deep trays, carpet mats and all-weather liners each do a different job — here is how coverage, walls and retention decide which keeps your carpet clean.
At a glance
- Types
- Rubber · deep tray · carpet
- Materials
- Rubber, TPE, carpet, vinyl
- Cost range
- $60–$260
- Fitment
- Year · cab · trim
Three kinds of floor protection
Factory carpet is the hardest thing to clean in a truck, and floor protection comes in three shapes that handle that differently. An all-weather liner is a molded tray with raised walls that holds mud, water and spills until you dump it out. A carpet mat is a dense, fitted mat that looks near-factory and traps dust in its pile. A rubber mat is a flat, cheap sheet that adds grip and wipes clean. The right choice depends on whether your floor sees ranch mud, beach sand, coffee and kids, or mostly office parking. This page compares coverage, wall height and how each type holds its position, because a mat that slides under the pedals is a safety problem, not just an annoyance.
- All-weather liner: raised tray, holds liquid
- Carpet mat: fitted, near-factory look
- Rubber mat: flat, cheap, wipe-clean
Coverage, walls and grip
The table compares the three types on coverage area, how much liquid they contain, how they stay put and how easy they are to clean. A liner covers the floor, the footwell walls and the transmission tunnel and holds a spilled drink; a carpet mat covers the floor and looks best but lets liquid through to the pad; a rubber mat covers the floor only and relies on friction to stay put. Coverage and retention are what keep grit off the carpet, so they matter more than the pattern on top. The best setup for most Valley trucks is a liner up front where feet and mud land, with a carpet or rubber mat in the back where traffic is lighter.
| Type | Coverage | Holds liquid | Retention |
|---|---|---|---|
| All-weather liner | Floor and walls | Yes | Clip or hook |
| Carpet mat | Floor | No | Friction, hooks |
| Rubber mat | Floor | Some | Friction |
Fitment is where cheap mats fail
A floor mat is only effective if it is cut for your exact cab and floor console, because a general trim leaves the edges of the carpet exposed right where boots land. The mat has to clear the seat tracks so it does not bind when the seat slides, and it has to meet the door sills and the kick panels so mud cannot run underneath. Trucks with a floor console, a manual transfer case, a vinyl floor or a factory subwoofer all change the shape needed. Retention is part of fitment too: a mat cut for the wrong truck may not line up with the factory hook, and a loose mat can slide under the brake pedal. We confirm the year, cab and floor layout before anything is ordered.
- Cut to your cab, console and floor shape
- Clears seat tracks and covers the sills
- Lines up with the factory retention hook
- Vinyl floors and subwoofers change the cut
What floor mats cost
Floor protection is one of the cheapest ways to save a truck's interior, and the price tracks the material and how many rows you cover. A rubber mat set usually runs $60 to $120, a fitted carpet set $120 to $220, and a full deep-tray all-weather liner set for front and rear $160 to $260. A three-row crew cab with liners front to back sits at the top of the range. The figure varies by year, make and trim and by coverage, so a front-only set is not a fair comparison to a full cab. Count the rows before you compare prices.
- Rubber mat set
- $60–$120
- Fitted carpet set
- $120–$220
- Front and rear liners
- $160–$260

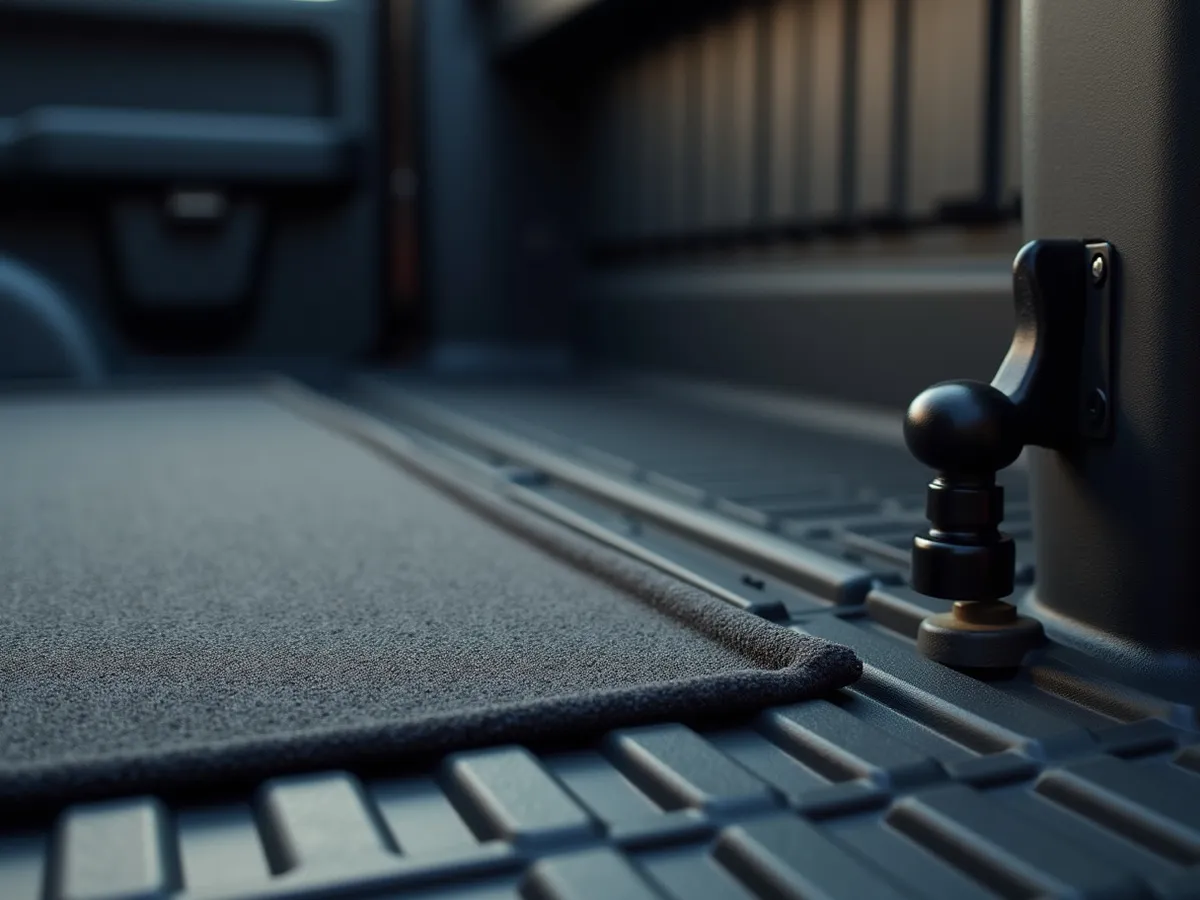

Installing mats so they stay put
Installing floor protection is quick, but doing it right matters. We remove the factory mats, vacuum the carpet and check for the retention posts, then set the new liner or mat so its hooks engage the factory points. The driver's mat is checked against the pedals at full travel to confirm nothing can catch, and the seat is slid through its full range to be sure the mat does not bind the tracks. Edges at the sills and console are pressed flat so mud cannot work under them, and any excess material at the kick panel is trimmed. It is a fifteen-minute job when the fit is right, and it is the fifteen minutes that decides whether the carpet stays clean.
-
Engage the factory retention hooks
-
Check the driver's mat against pedal travel
-
Slide the seat through its full range
-
Press edges flat at sills and console
Keeping mats working
All-weather liners want to be pulled out and dumped or hosed off, then dried before they go back, so the trapped grit does not turn into a grinding paste. Carpet mats want a vacuum and an occasional spot clean, and they should come out when they are soaked so the pad underneath can dry. Rubber mats get a wash and a wipe of protectant so they do not dry out and crack. In all cases, check once in a while that the retention hooks are still engaged, because a mat that has crept forward is one hard stop away from becoming a hazard. The floor under the mat should be inspected now and then for the water that a bad seal lets in.
- Liner: pull, dump, dry before reinstall
- Carpet: vacuum and spot clean
- Rubber: wash and protect
- Re-check retention hooks often
From the install bay
Every truck is measured, mounted and walked with the owner before the keys change hands.
Questions on this part
Will custom mats fit over a vinyl floor?
Yes, with the right pattern. A vinyl floor has different contours than carpet, so the mat has to be cut for it, and we confirm which floor your truck has before ordering.
Are deep-tray liners worth the extra cost?
On a truck that sees mud, sand or spilled drinks, yes. A tray holds the mess until you dump it, while a flat mat lets liquid reach the carpet and the pad.
Can a floor mat slide under the pedals?
An unsecured or wrong-fit mat can, which is why we always engage the factory retention hooks and check pedal travel. It is the most important part of the install.
Should I cover the rear floor too?
It depends on passengers and cargo. If kids, dogs or gear ride back there, a rear liner saves the carpet; if the back is mostly storage, a lighter mat is enough.
How often should I clean the mats?
Pull and rinse liners whenever they hold visible grit, and vacuum carpet mats at the same interval as the interior. Left alone, trapped sand grinds the carpet it sits on.
