Drop-In vs Spray-In vs Mat: Choosing a Bed Liner Format
A format-by-format look at drop-in, spray-in, mat and bed-rug liners — how each one fits, drains and wears, and which one suits your bed.
At a glance
- Types
- Spray-in · drop-in · mat · rug
- Materials
- Polyurethane, polyethylene, rubber
- Cost range
- $80–$900
- Fitment
- Year · cab · bed
The four formats, side by side
A bed liner is not one product; it is a family of four formats that solve the same problem in very different ways. A spray-in coating bonds to the steel and becomes a permanent textured skin. A drop-in is a molded plastic shell that sits on the bed floor and walls. A bed mat is a thick rubber sheet that covers the floor only. A bed rug is a padded, carpeted liner that cushions cargo and stays soft underfoot. Each one fits differently, drains differently and fails differently, so the honest answer to which is best is always which is best for how you load. This page walks the four formats through fitment, drainage, cost and lifespan so you can choose on facts instead of a sales pitch.
- Spray-in: permanent, bonded, textured

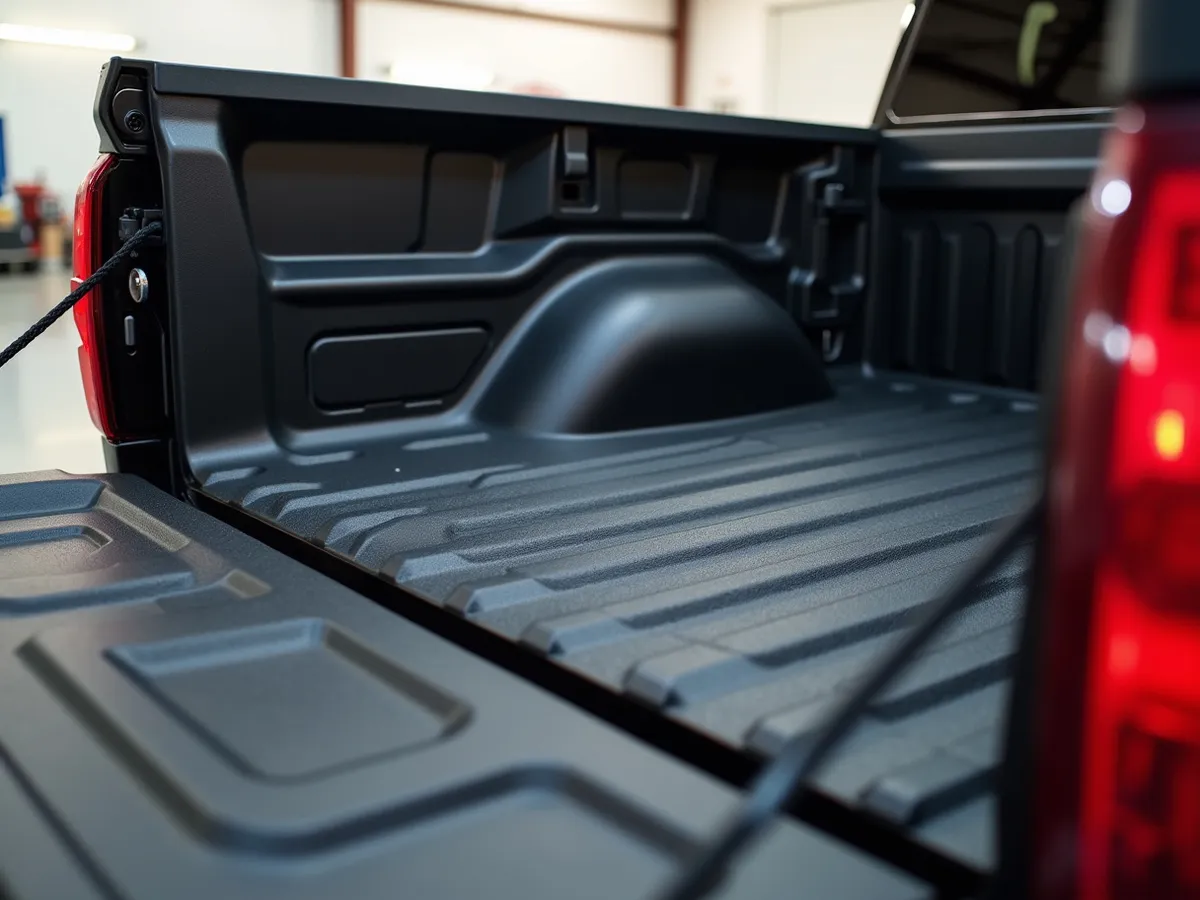

- Drop-in: molded shell, removable
- Bed mat: rubber floor cover only
- Bed rug: padded and carpeted
How the formats compare
The table below compares the four formats on the things that actually decide ownership: how they protect paint, how they handle water, how long they last and what they cost installed. No format wins every column. A drop-in is cheap and removable but can trap grit that rubs paint; a spray-in never traps anything but is permanent; a mat is the least protective and the easiest to live with; a rug is the softest and the least suited to rocks and pipe.
| Format | Protects paint | Drainage | Installed range |
|---|---|---|---|
| Spray-in | Best — bonded | Drains over texture | $450–$900 |
| Drop-in | Good — rub risk | Can trap grit | $200–$450 |
| Bed mat | Floor only | Good | $80–$250 |
| Bed rug | Floor and some walls | Slower to dry | $250–$500 |
Format fitment is not one-size
Every format is cut or molded to a specific bed, and the wrong size shows up as gaps that collect grit and water. Spray-in is the most forgiving because it is applied on the truck, but the prep still depends on your bed length and whether the rails and tailgate are coated too. Drop-in liners are molded per bed length and cab, and a shell made for a different wheelbase will ride up at the front wall or leave the tailgate lip bare. Mats and rugs are cut for the floor and, in a rug's case, trimmed around wheel wells and tie-downs. We measure the bed and confirm the factory options before anything is ordered, because a liner that does not seat flat protects nothing.
- Molded drop-ins are bed-length and cab specific
- Spray-in prep follows your bed and tailgate
- Mats and rugs trim around wells and tie-downs
- Factory spray-ins and rails change the fit
What each format costs
Installed pricing differs sharply by format, and the spread is bigger than most buyers expect. A spray-in usually runs $450 to $900 depending on coating and bed length, a drop-in $200 to $450, a rubber bed mat $80 to $250 and a padded bed rug $250 to $500. The figure varies by year, make and trim, and a bed with existing rust or an old failing liner can add prep at the top of any range. Comparing a drop-in price against a spray-in price is fair only when you count how many years each will serve and what each protects.
- Spray-in
- $450–$900 installed
- Drop-in
- $200–$450
- Bed mat
- $80–$250
- Bed rug
- $250–$500
Install differences that matter
A spray-in install is a multi-step process: scuff the bed, remove the tailgate and loose hardware, mask the rails and lights, apply the coating and let it cure before heavy loads. A drop-in or mat install is quicker: clean the bed, check the drain holes and tailgate gaps, then seat and fasten the liner so it cannot shift. A bed rug clips or adheres into place and needs the same drain clearance. In every case we confirm the fit, clear the drains and walk the finished bed with you, because a liner that was installed in a hurry is the one that traps water and peels.
-
Spray-in: prep, mask, coat, cure
-
Drop-in and mat: clean, seat, fasten
-
Rug: clip or adhere with drains clear
Making any format last
The care routine follows the format. Spray-in coatings want a rinse and a mild wash, plus a glance at the edges where the texture meets bare steel. Drop-ins want to be lifted once a year so you can clear the grit that collects underneath and check the paint it sits on. Mats want to come out and get hosed down before sand and salt grind into the bed floor. Rugs want to dry fully after a soak so the padding does not stay wet against bare metal. The one habit that saves all four is keeping the drain holes open so water never sits in the bed after a Valley downpour.
- Spray-in: wash and check the edges
- Drop-in: lift yearly to clear grit
- Mat: pull out and rinse the sand
- Rug: dry fully after a soak
From the install bay
Every truck is measured, mounted and walked with the owner before the keys change hands.
Questions on this part
Is a spray-in liner always better than a drop-in?
Not always. A spray-in protects paint best and never traps grit, but it is permanent and costs more. A drop-in is a reasonable choice for a light-duty second truck or a lease you will return, as long as you lift it once a year to clear debris.
Can I put a bed mat over a spray-in liner?
Yes, and it is a common pairing on work trucks: the spray-in takes the impact while the mat cushions cargo and quiets the bed. The mat just needs to come out now and then so it does not hold moisture against the coating.
Which format is best for a truck that hauls a dog or goes camping?
A bed rug is the usual pick, because it stays soft, insulates a little and cleans up with a hose. It is less suited to dropping rocks or pipe, which is what a spray-in is for.
Do any of these formats prevent rust?
A spray-in bonded to sound metal keeps water off the steel and helps prevent rust, provided it was prepped correctly. A drop-in can actually encourage rust if grit and moisture collect underneath, which is why the yearly lift-and-clean matters.
How long does each format last?
A quality spray-in can serve ten to twenty years, a drop-in five to ten, a mat five to eight and a rug five to ten, depending on sun exposure and how hard it is loaded.
